Фрезы KSSM для прорезания пазов фиксированной ширины; IC 10 мм; Фрезы KSSS с креплением на оправке; Правое и левое исполнение; Дюйм. KSSS; Крепление на оправке. KSSM™ • Фрезы для прорезания пазов IC 10 мм
Особенности:
- Фрезы правого и левого исполнения с шириной резания 0,359".
- Большой выбор геометрий и сплавов для обработки большинства материалов.
- Четыре режущие кромки на пластине.
- Пластины с различными радиусами при вершине.
- Шлифованные пластины обеспечивают превосходное качество обработанной поверхности.
Применение:
- Side Milling/Shoulder Milling: Square End with AE/AP dimensions

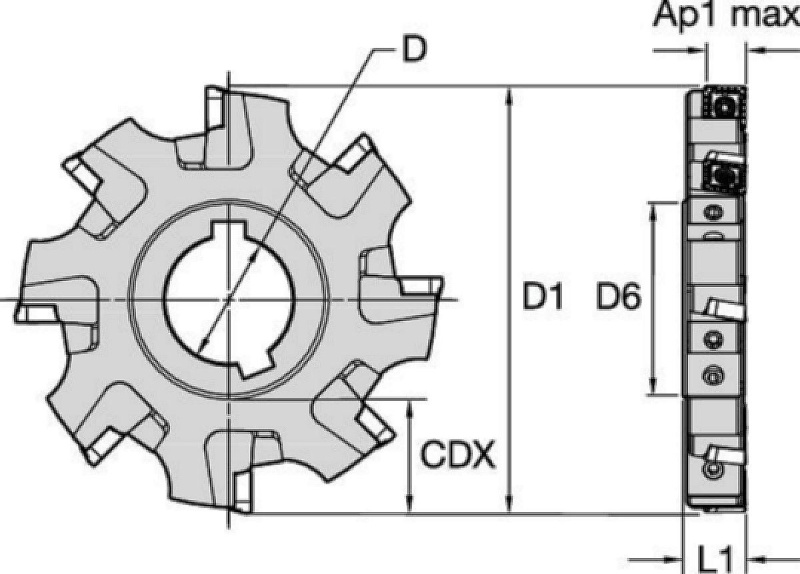

| SAP Material Number | ISO Catalog Number | [D] Adapter / Shank / Bore Diameter | [D1] Effective Cutting Diameter | [BM] Cutting Width Minimum | [D6] Hub Diameter | [L1] Gage Length | Weight Pounds | [AP1MAX] 1st Maximum Cutting Depth | Number of Effective Cutting Edges on Face | Max RPM | Number of Inserts | [CDX] Radial Maximum Depth of Cut |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3330528 | 100G10RP90SP10 | 32.0 | 100.0000 | 9.1100 | 46.7500 | 16.0000 | 1.20 | 9.1100 | 10 | 17200 | 10 | 26.3000 |
| 3330531 | 125H11RP90SP10 | 40.0 | 125.0000 | 9.1100 | 54.7500 | 16.0000 | 1.89 | 9.1100 | 11 | 15400 | 11 | 34.8000 |
| 3330975 | 160H11LP90SP10 | 40.0 | 160.0000 | 9.1100 | 54.7500 | 16.0000 | 3.46 | 9.1100 | 11 | 13660 | 11 | 52.5500 |
| 3330974 | 160H11RP90SP10 | 40.0 | 160.0000 | 9.1100 | 54.7500 | 16.0000 | 3.46 | 9.1100 | 11 | 13660 | 11 | 52.5500 |
| 3330978 | 200J13LP90SP10 | 50.0 | 200.0000 | 9.1100 | 68.7500 | 16.0000 | 5.65 | 9.1100 | 13 | 12200 | 13 | 65.3000 |
| 3330977 | 200J13RP90SP10 | 50.0 | 200.0000 | 9.1100 | 68.7500 | 16.0000 | 5.65 | 9.1100 | 13 | 12200 | 13 | 65.3000 |
| 2629769 | KSSS400ASP10L625 | 31.75 | 101.6000 | 9.1100 | 47.7520 | 15.8750 | 1.22 | 9.1100 | 10 | 17100 | 10 | 26.3650 |
| 2629770 | KSSS400ASP10R625 | 31.75 | 101.6000 | 9.1100 | 47.7520 | 15.8750 | 1.22 | 9.1100 | 10 | 17100 | 10 | 26.3650 |
| 2629772 | KSSS500ASP10L625 | 38.1 | 127.0000 | 9.1100 | 57.1500 | 15.8750 | 1.98 | 9.1100 | 11 | 15300 | 11 | 34.3660 |
Выбор пластины:
Рекомендации по выбору режущих пластин
| Material Group | Light Machining | General Purpose | Heavy Machining | |||
| – | (Light geometry) | – | (Strong geometry) | |||
| – | wear resistance |  | toughness | |||
| – | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | .E..LD2 | KCPM40 | .E..GB2 | KCPM40 | .S..GB2 | KCPK30 |
| P3–P4 | .E..LD2 | KCPM40 | .E..GB2 | KCPK30 | .S..GB2 | KCPK30 |
| P5–P6 | .E..LD2 | KC725M | .E..GB2 | KC725M | .S..GB2 | KC725M |
| M1–M2 | .E..LD2 | KC725M | .E..GB2 | KC725M | .S..GB2 | KC725M |
| M3 | .E..LD2 | KCPM40 | .E..GB2 | KCPM40 | .S..GB2 | KC725M |
| K1–K2 | .E..LD2 | KC520M | .E..GB2 | KCK15 | .S..GB2 | KCK15 |
| K3 | .E..LD2 | KC520M | .E..GB2 | KC520M | .S..GB2 | KC520M |
| N1–N2 | .F..LE | KC410M | .F..LE | KC410M | .F..LE | KC410M |
| N3 | .F..LE | KC410M | .F..LE | KC410M | .F..LE | KC410M |
| S1–S2 | .E..LD2 | KC725M | .E..GB2 | KC725M | .S..GB2 | KC725M |
| S3 | .E..LD2 | KCPM40 | .E..GB2 | KCPM40 | .S..GB2 | KC725M |
| S4 | .E..LD2 | KC725M | .E..GB2 | KC725M | .S..GB2 | KC725M |
| H1 | – | – | – | – | – | – |
Подача:
Рекомендуемые начальные подачи [мм/зуб]
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40–100% | ||||||||||||
| .F..LE | 0,12 | 0,42 | 0,70 | 0,08 | 0,30 | 0,50 | 0,06 | 0,23 | 0,38 | 0,06 | 0,20 | 0,33 | 0,05 | 0,18 | 0,30 | .F..LE |
| .F..LD | 0,12 | 0,42 | 0,70 | 0,08 | 0,30 | 0,50 | 0,06 | 0,23 | 0,38 | 0,06 | 0,20 | 0,33 | 0,05 | 0,18 | 0,30 | .F..LD |
| .E..LD2 | 0,12 | 0,46 | 0,81 | 0,09 | 0,33 | 0,58 | 0,07 | 0,25 | 0,43 | 0,06 | 0,22 | 0,38 | 0,05 | 0,20 | 0,35 | .E..LD2 |
| .E..LD | 0,17 | 0,47 | 0,82 | 0,12 | 0,34 | 0,59 | 0,09 | 0,26 | 0,44 | 0,08 | 0,22 | 0,38 | 0,07 | 0,20 | 0,35 | .E..LD |
| .E..GB2 | 0,23 | 0,53 | 0,89 | 0,17 | 0,38 | 0,64 | 0,13 | 0,29 | 0,48 | 0,11 | 0,25 | 0,41 | 0,10 | 0,23 | 0,38 | .E..GB2 |
| .S..GB | 0,23 | 0,59 | 0,95 | 0,17 | 0,43 | 0,68 | 0,13 | 0,32 | 0,51 | 0,11 | 0,28 | 0,44 | 0,10 | 0,25 | 0,41 | .S..GB |
| .S..GB2 | 0,23 | 0,59 | 0,95 | 0,17 | 0,43 | 0,68 | 0,13 | 0,32 | 0,51 | 0,11 | 0,28 | 0,44 | 0,10 | 0,25 | 0,41 | .S..GB2 |
| .S..GN | 0,23 | 0,59 | 0,95 | 0,17 | 0,43 | 0,68 | 0,13 | 0,32 | 0,51 | 0,11 | 0,28 | 0,44 | 0,10 | 0,25 | 0,41 | .S..GN |
| Light Machining | General Purpose | Heavy Machining |
| Light Machining | General Purpose | Heavy Machining |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40–100% | ||||||||||||
| .F..LE | .005 | .017 | .028 | .003 | .012 | .020 | .003 | .009 | .015 | .002 | .008 | .013 | .002 | .007 | .012 | .F..LE |
| .F..LD | .005 | .017 | .028 | .003 | .012 | .020 | .003 | .009 | .015 | .002 | .008 | .013 | .002 | .007 | .012 | .F..LD |
| .E..LD2 | .005 | .018 | .032 | .004 | .013 | .023 | .003 | .010 | .017 | .002 | .009 | .015 | .002 | .008 | .014 | .E..LD2 |
| .E..LD | .007 | .019 | .032 | .005 | .013 | .023 | .004 | .010 | .017 | .003 | .009 | .015 | .003 | .008 | .014 | .E..LD |
| .E..GB2 | .009 | .021 | .035 | .007 | .015 | .025 | .005 | .011 | .019 | .004 | .010 | .016 | .004 | .009 | .015 | .E..GB2 |
| .S..GB | .009 | .023 | .037 | .007 | .017 | .027 | .005 | .013 | .020 | .004 | .011 | .017 | .004 | .010 | .016 | .S..GB |
| .S..GB2 | .009 | .023 | .037 | .007 | .017 | .027 | .005 | .013 | .020 | .004 | .011 | .017 | .004 | .010 | .016 | .S..GB2 |
| .S..GN | .009 | .023 | .037 | .007 | .017 | .027 | .005 | .013 | .020 | .004 | .011 | .017 | .004 | .010 | .016 | .S..GN |
Скорость:
Рекомендуемые начальные скорости резания [м/мин]
| Material Group | KC410M | KC520M | KC725M | KCK15 | KCPM20 | KCPK30 | |||||||||||||
| P | 1 | – | – | – | – | – | – | 260 | 230 | 215 | – | – | – | 550 | 485 | 450 | 455 | 395 | 370 |
| 2 | – | – | – | – | – | – | 220 | 190 | 160 | – | – | – | 340 | 310 | 275 | 280 | 255 | 230 | |
| 3 | – | – | – | – | – | – | 200 | 170 | 140 | – | – | – | 310 | 275 | 255 | 255 | 230 | 205 | |
| 4 | – | – | – | – | – | – | 180 | 150 | 120 | – | – | – | 230 | 215 | 190 | 190 | 175 | 160 | |
| 5 | – | – | – | – | – | – | 150 | 135 | 120 | – | – | – | 275 | 250 | 230 | 260 | 230 | 210 | |
| 6 | – | – | – | – | – | – | 130 | 100 | 80 | – | – | – | 190 | 170 | 145 | 160 | 135 | – | |
| M | 1 | – | – | – | – | – | – | 170 | 150 | 135 | – | – | – | 225 | 200 | 175 | 205 | 185 | 155 |
| 2 | – | – | – | – | – | – | 155 | 130 | 110 | – | – | – | 205 | 175 | 160 | 185 | 160 | 140 | |
| 3 | – | – | – | – | – | – | 115 | 100 | 80 | – | – | – | 160 | 145 | 125 | 145 | 130 | 115 | |
| K | 1 | – | – | – | 270 | 245 | 215 | – | – | – | 420 | 385 | 340 | 360 | 325 | 295 | 295 | 265 | 240 |
| 2 | – | – | – | 210 | 190 | 175 | – | – | – | 335 | 295 | 275 | 285 | 255 | 235 | 235 | 210 | 190 | |
| 3 | – | – | – | 175 | 160 | 145 | – | – | – | 280 | 250 | 230 | 240 | 215 | 200 | 195 | 175 | 160 | |
| N | 1–2 | 1215 | 1080 | 995 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | 1080 | 995 | 915 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | 35 | 30 | 25 | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | 35 | 30 | 25 | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | 45 | 35 | 25 | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | 60 | 45 | 30 | – | – | – | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Material Group | KC410M | KC520M | KC725M | KCK15 | KCPM20 | KCPK30 | |||||||||||||
| P | 1 | – | – | – | – | – | – | 860 | 750 | 700 | – | – | – | 1810 | 1590 | 1470 | 1485 | 1300 | 1210 |
| 2 | – | – | – | – | – | – | 720 | 630 | 530 | – | – | – | 1120 | 1010 | 910 | 920 | 830 | 750 | |
| 3 | – | – | – | – | – | – | 660 | 560 | 460 | – | – | – | 1010 | 910 | 830 | 830 | 750 | 680 | |
| 4 | – | – | – | – | – | – | 590 | 490 | 390 | – | – | – | 760 | 700 | 630 | 620 | 575 | 520 | |
| 5 | – | – | – | – | – | – | 490 | 440 | 390 | – | – | – | 910 | 820 | 750 | 850 | 760 | 690 | |
| 6 | – | – | – | – | – | – | 430 | 330 | 260 | – | – | – | 630 | 550 | 475 | 520 | 450 | – | |
| M | 1 | – | – | – | – | – | – | 560 | 490 | 450 | – | – | – | 730 | 655 | 570 | 680 | 600 | 515 |
| 2 | – | – | – | – | – | – | 510 | 430 | 360 | – | – | – | 670 | 580 | 520 | 610 | 530 | 460 | |
| 3 | – | – | – | – | – | – | 380 | 330 | 260 | – | – | – | 530 | 475 | 410 | 475 | 430 | 380 | |
| K | 1 | – | – | – | 880 | 800 | 710 | – | – | – | 1380 | 1255 | 1115 | 1180 | 1070 | 960 | 965 | 875 | 780 |
| 2 | – | – | – | 690 | 620 | 580 | – | – | – | 1095 | 975 | 910 | 940 | 840 | 770 | 770 | 690 | 630 | |
| 3 | – | – | – | 580 | 520 | 470 | – | – | – | 920 | 815 | 750 | 790 | 700 | 650 | 645 | 575 | 530 | |
| N | 1–2 | 3990 | 3550 | 3270 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | 3550 | 3270 | 3000 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | 115 | 100 | 80 | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | 115 | 100 | 80 | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | 150 | 115 | 80 | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | 200 | 150 | 100 | – | – | – | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
